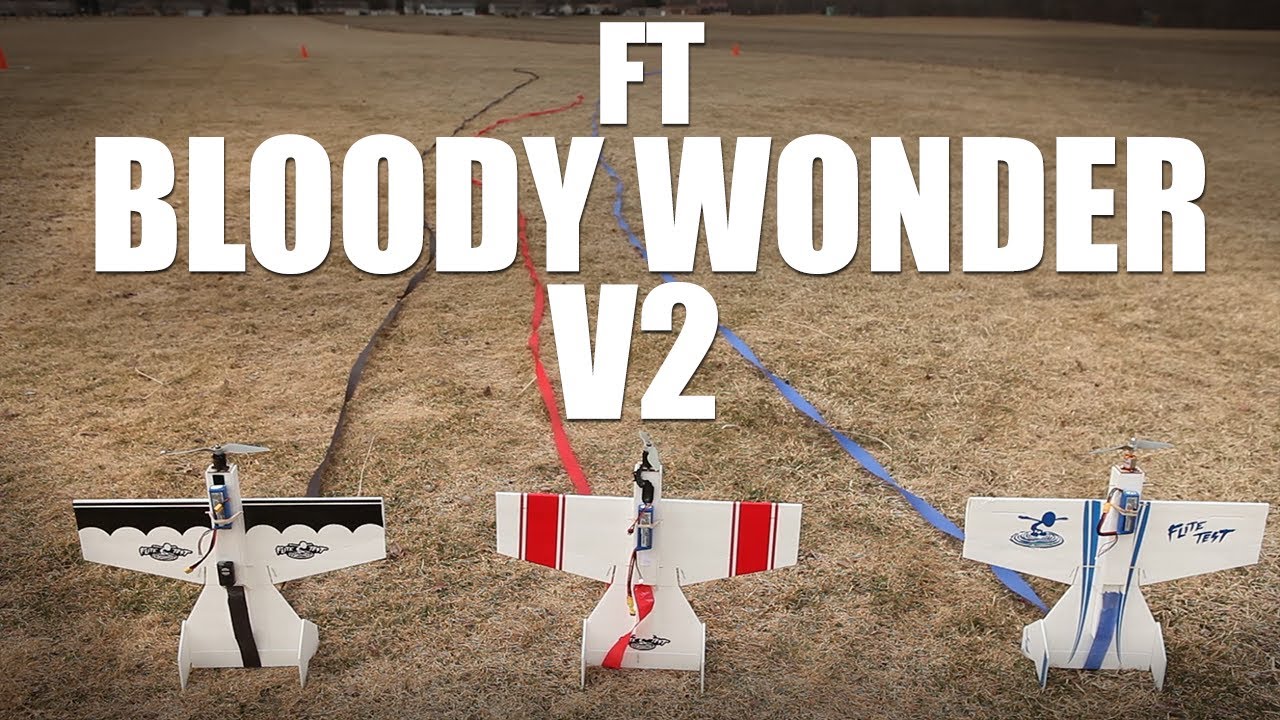

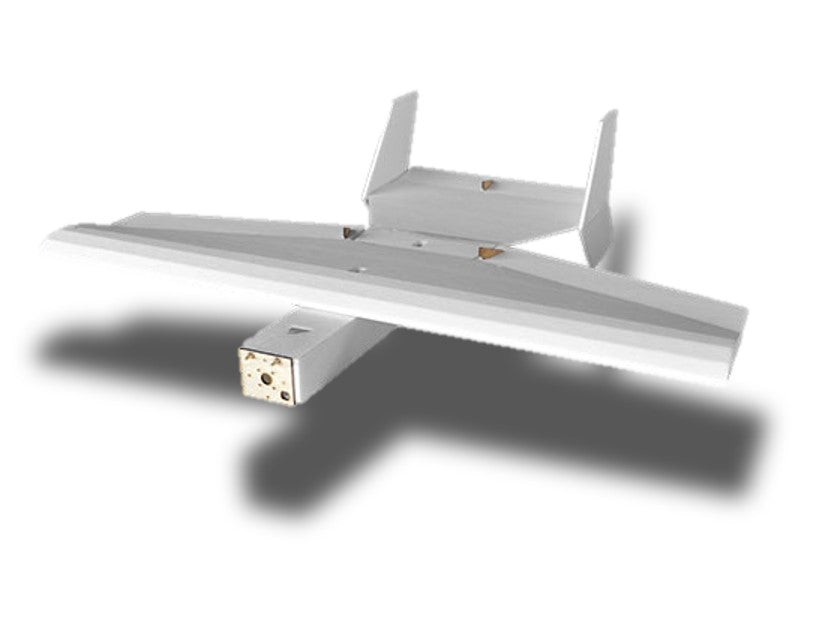

FT Bloody Wonder (711 mm)

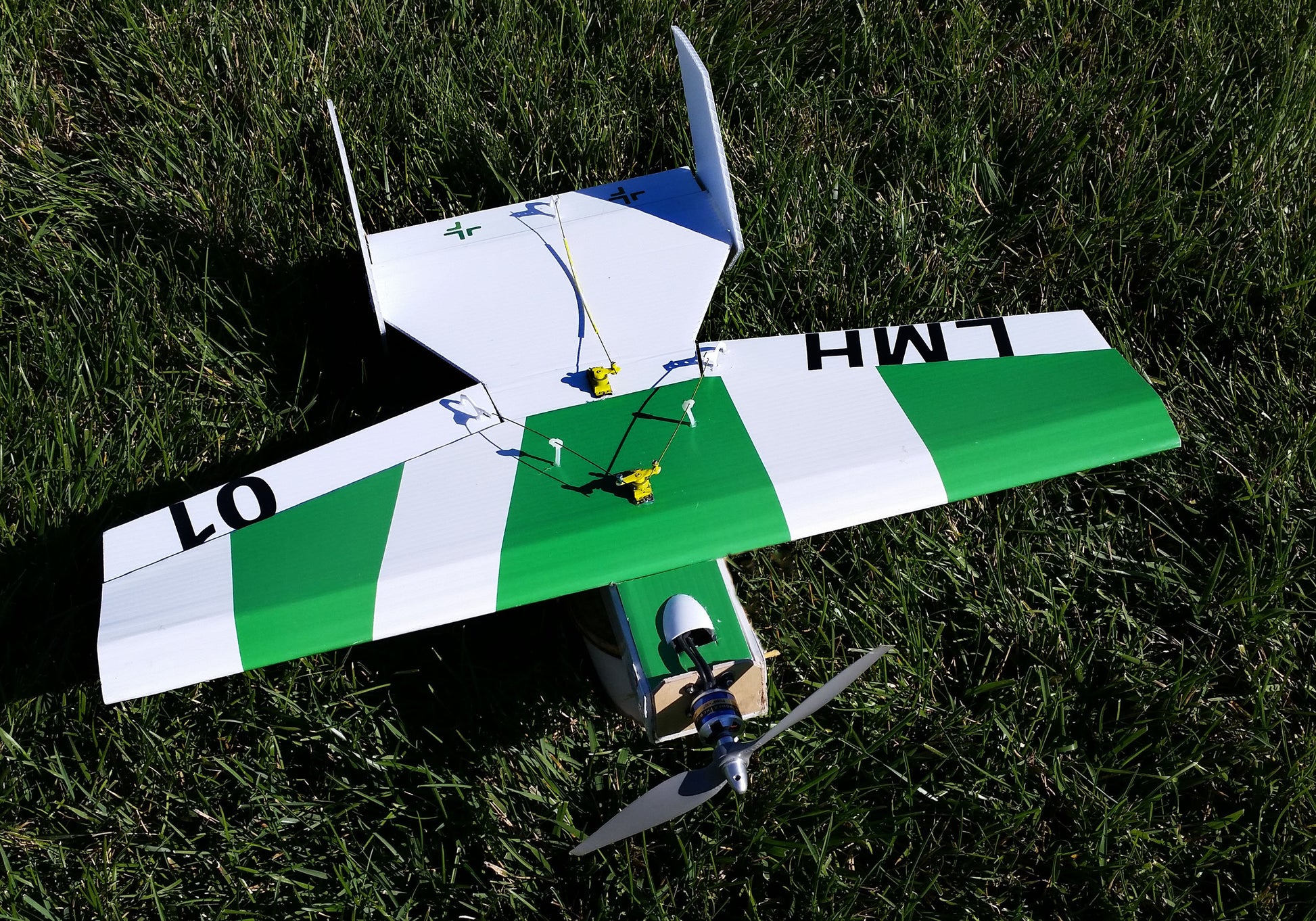

The Bloody Wonder is a simple three channel "Bank and Yank" style design. Beginners can outfit their plane with a small 24 gram motor to experience manageable speeds and excellent maneuverability. Place a larger motor on the same design and you will be able to rocket off vertically with blistering speed, while pulling a 75 ft streamer behind you. This airframe is compatible with the swappable series developed by Josh Bixler.



NOTE: This includes the airframe only (no electronics).

Specs:

* WEIGHT WITHOUT BATTERY:11.5 oz (326 grams)
* CENTER OF GRAVITY: 1.6" (40.5 mm) from leading edge of wing
* CONTROL SURFACE THROWS: 12 degrees deflection Expo 30%
* WINGSPAN: 28 inches (711 mm)
*RECOMMENDED - POWERPACK B:

RECOMMENDED MOTOR: 24 g, 1300kv minimum
* RECOMMENDED PROP: 9 X 4.7 slow fly prop
* RECOMMENDED ESC: 12 - 30 amp
* RECOMMENDED BATTERY: 1300-2200mAh 3s or 4s
* RECOMMENDED SERVOS: (2) 9 gram servos



Kit includes:

* Poster Board wing tip covers
* Power Pod (Swappable - no electronics))
* Firewall
* Push rods
* Control horns
* Velcro
* Bar-BQ Skewers
* Rubber Bands
* Coffee Stir
* Data Sheet
* Throw Gauge
* Foam Wheels
* Rod for landing gear

BUILD VIDEO:
