FT Power Pack C Radial v2

The Flite Test Power Pack C Radial v.2 contains everything needed to power one of the Park Flyers planes. The only other components you will need to fly is a battery, charger, transmitter, and receiver. The included motor and ESC comes pre-soldered with 3.5mm Bullets and XT60 Connector.

PLEASE DO NOT CONNECT THE RED JST PLUG INTO YOUR RECEIVER. THIS IS SPECIFICALLY FOR HIGH VOLTAGE ACCESSORIES SUCH AS 12V LEDS OR DJI AIR UNITS!

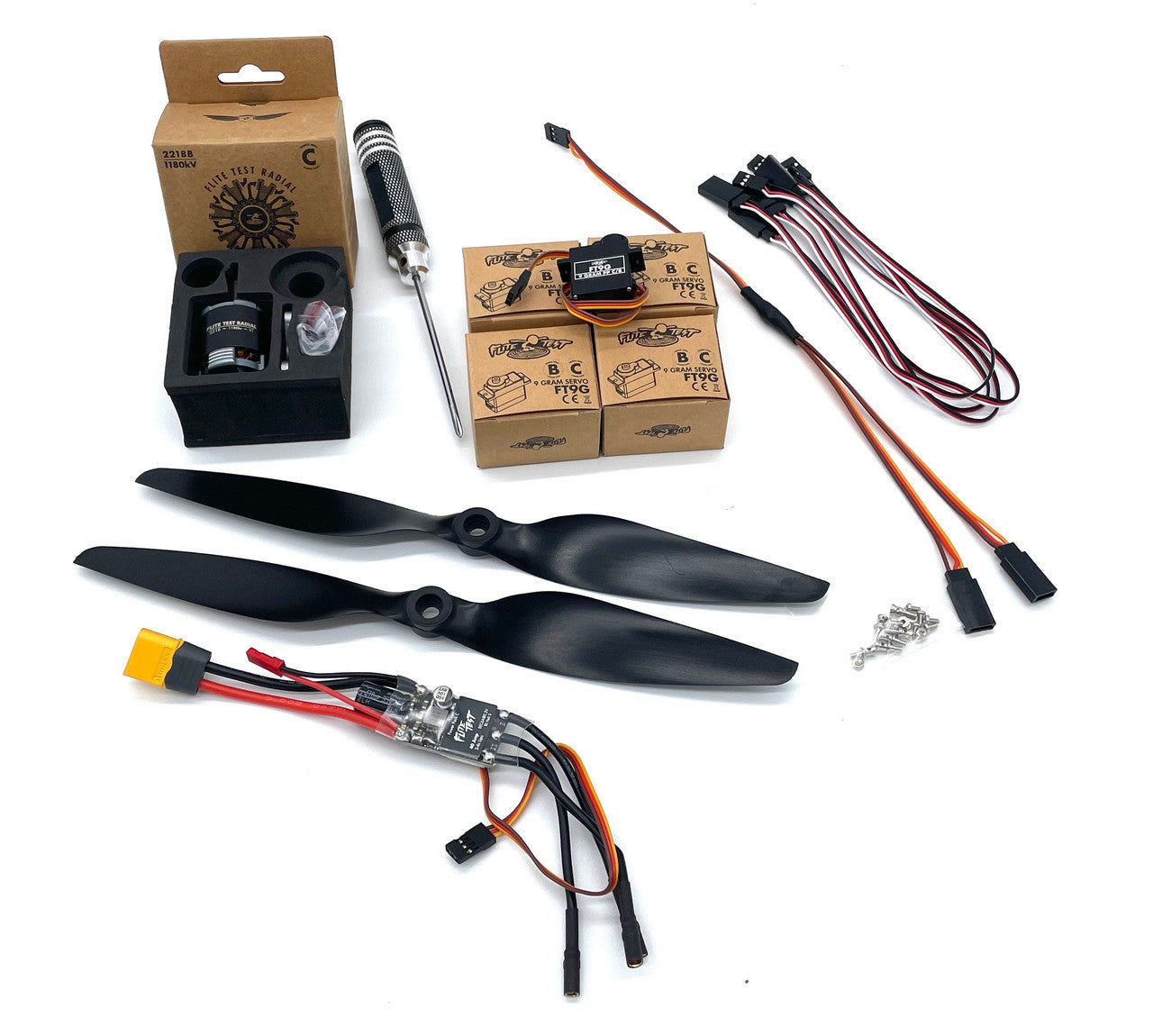

PACK INCLUDES:

• (1) Motor - Radial 2218/1180kV
• (1) Flite Test 40A ESC with XT-60 Connector
• (4) Servos - Flite Test FT9G 9g servo
• (1) Y-Lead (12")
• (4) 30cm Extensions
• (6) Linkage Stoppers
• (2) HQ Propellers 10 x 4.5ccw

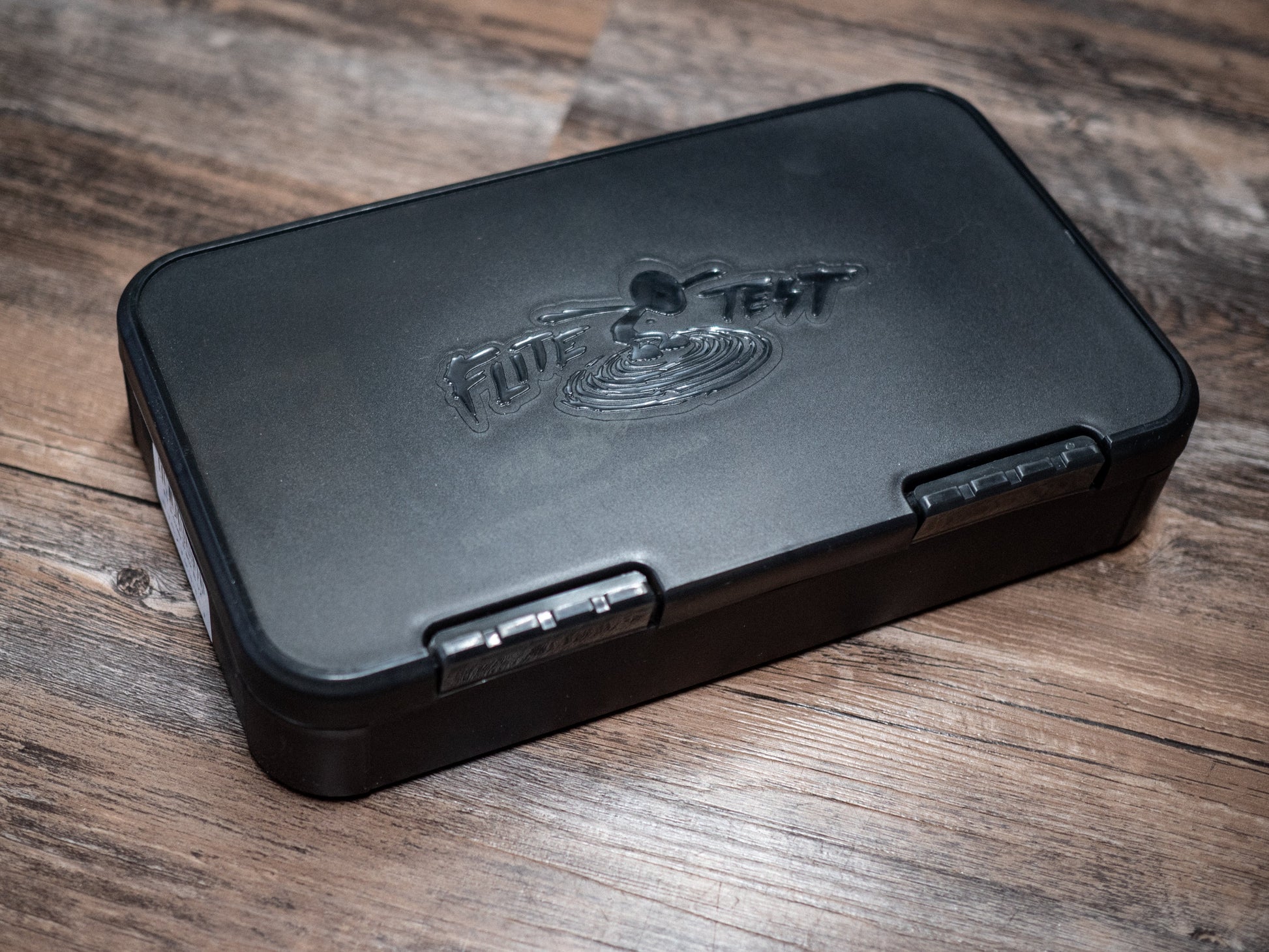

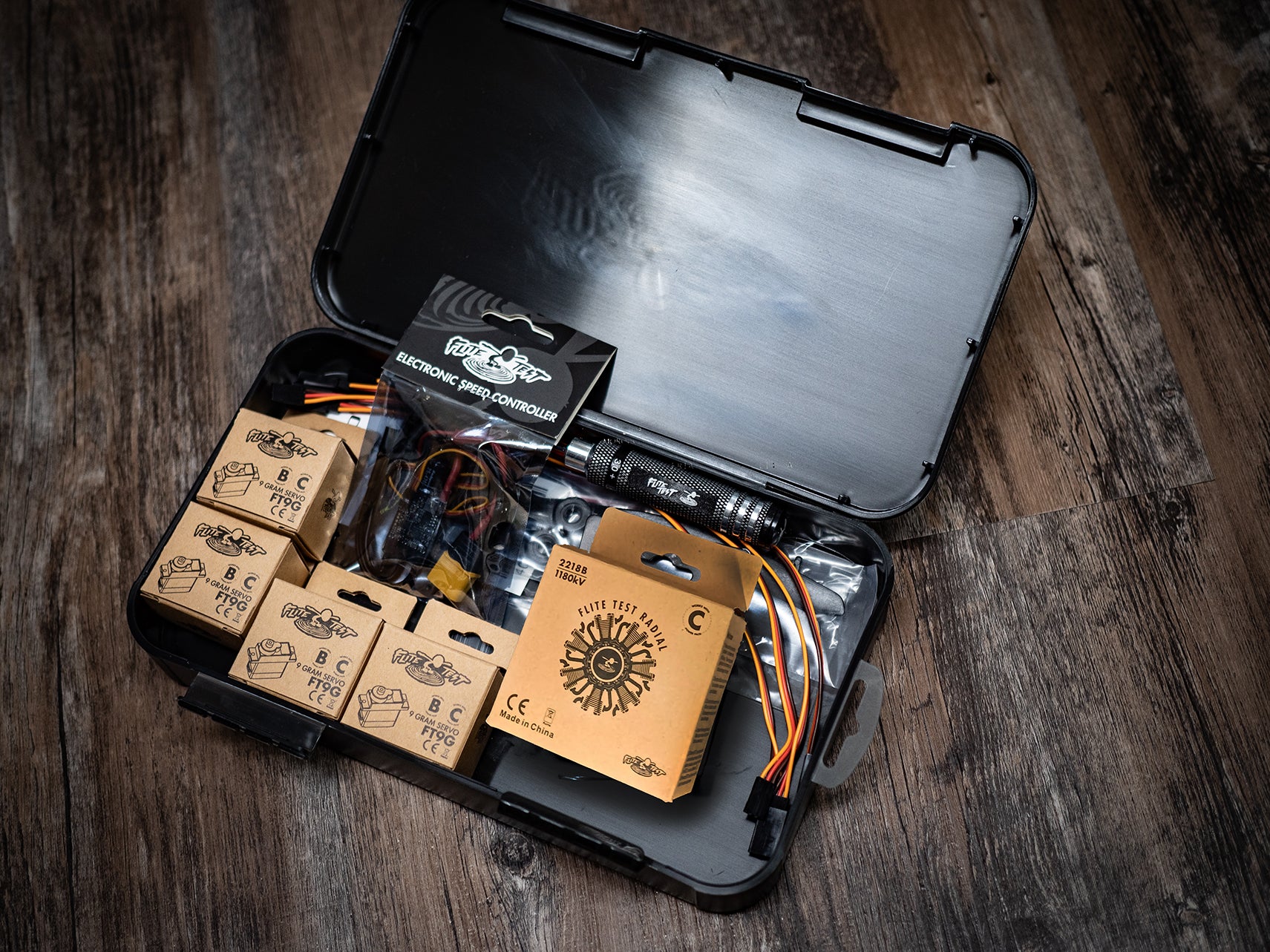

The branded hard cases are only available still for a limited period - in future these hard cases will be replaced by cardboard boxes

FliteTest FT9G Analog Servo spec:

• VOLTAGE INPUT: 4.8-6V
• STANDARD DIRECTION: Counter Clockwise
• STALL TORQUE:  6.0V: 161 oz/in
• OPERATING SPEED:  6.0V: 0.10 Sec/60 Degrees
• DIMENSIONS: 23x12.1x27.3mm (LxWxH)
• WEIGHT: 9.8g
• GEAR TRAIN: Plastic
• SERVO TYPE: Analog

FliteTest  40A  ESC Specs:

• 40A constant current
• 3s and 4s capable
• XT60 battery lead
• JST plug allows for direct battery voltage for FPV or LEDs
• 3.5mm bullets pre soldered
• 5A/5V BEC (Double the industry norm!)
• BLHeli_S Firmware (Programmable!)

KV: 1180kv
WEIGHT: Approx. 76g with wires and bullets
WIRE AWG: 20AWG
STATOR DIAMETER: 22mm
STATOR HEIGHT: 18mm
SHAFT DIAMETER: 6mm
CONFIGURATION: 12N14P
MOTOR DIAMETER: 27.5mm
MOTOR HEIGHT: 34.0mm
RECOMMENDED PROPELLER: HQ 10 x 4.5
PROP ADAPTER SHAFT THREAD: M5 with prop and nylock nut incl.
INPUT VOLTAGE: 3S-4S (12.6 - 16.8v)
BULLETS: 3.5mm - Preinstalled

Standard m3 holes in base with optional mounting plate incl

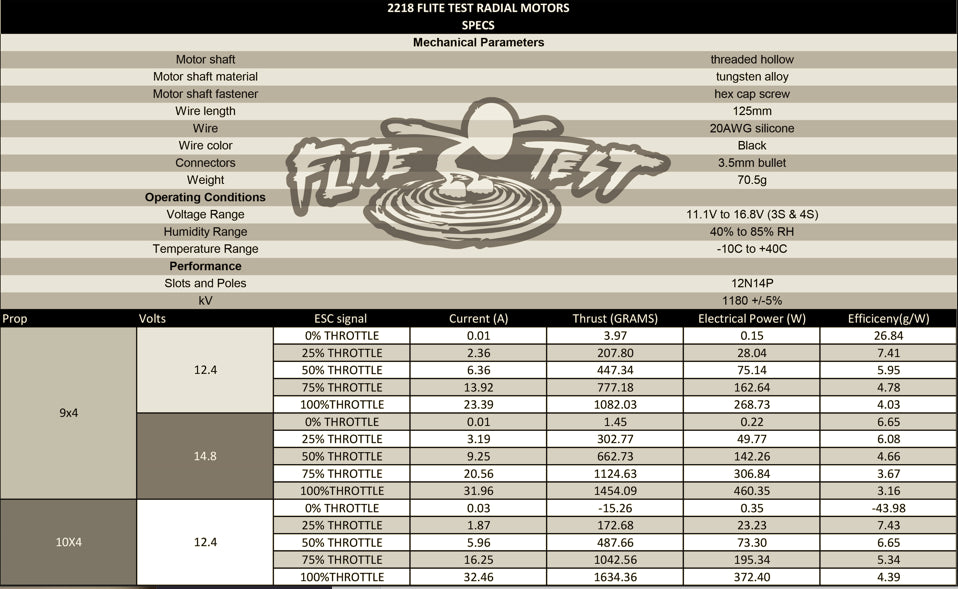

Motor Performance specs
