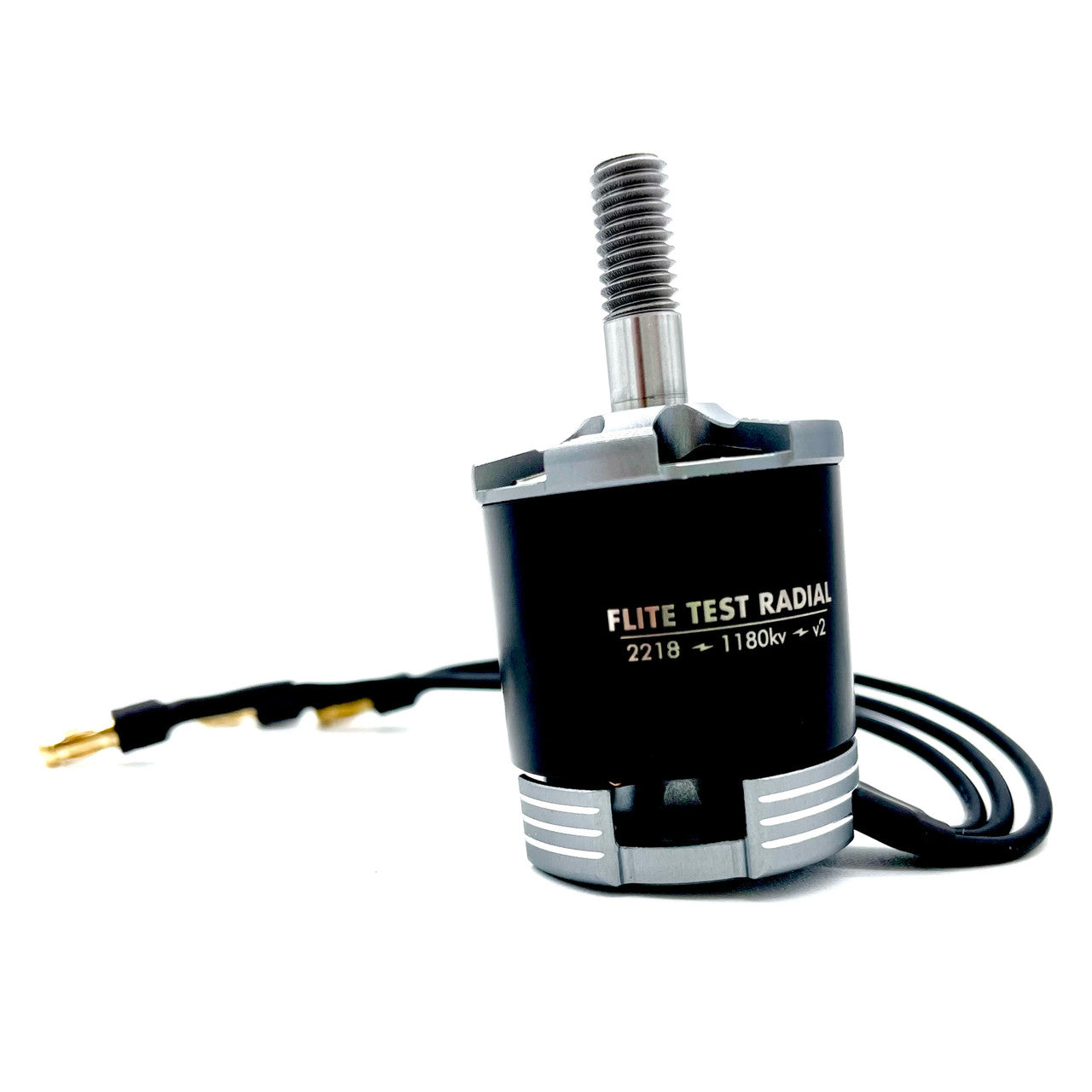

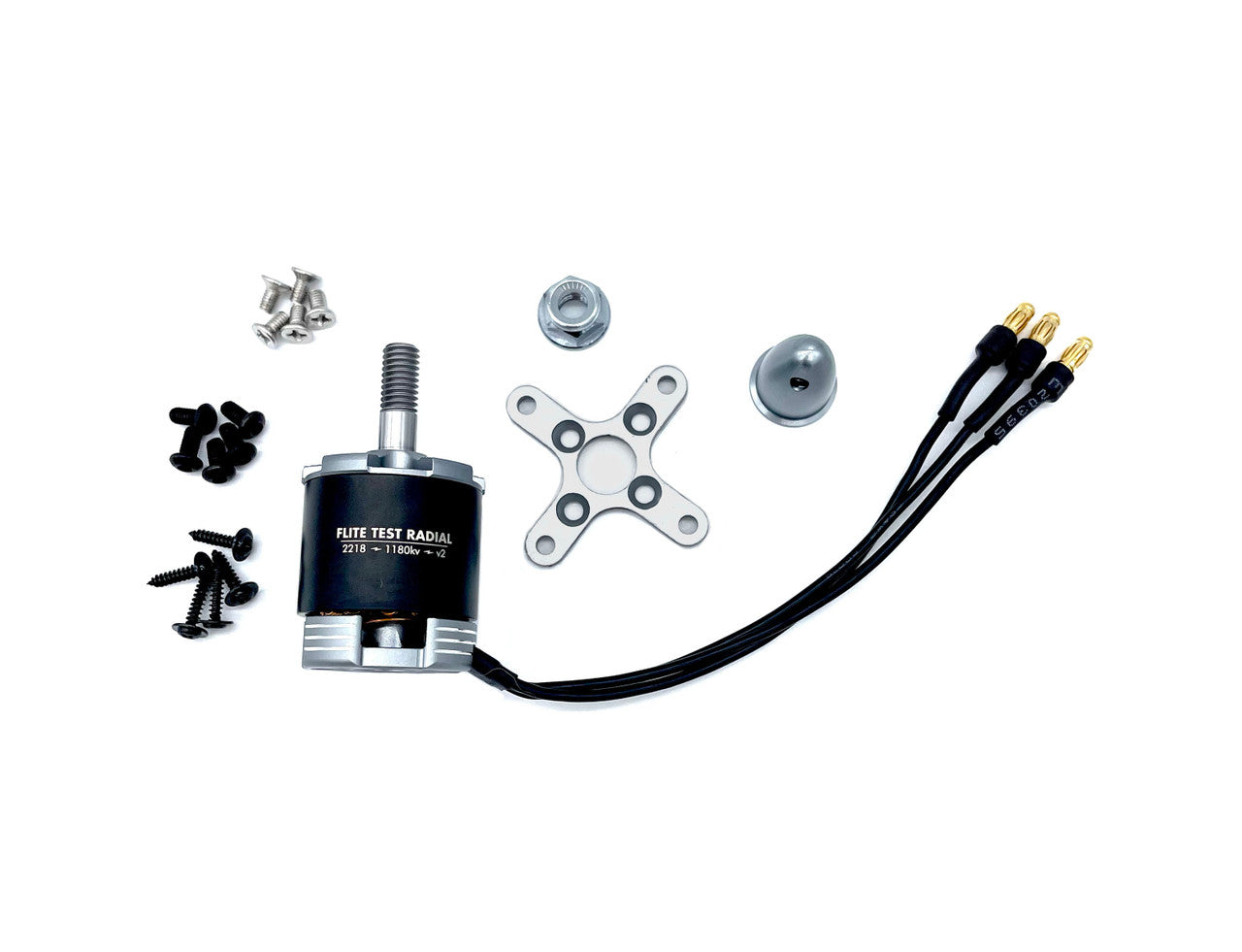

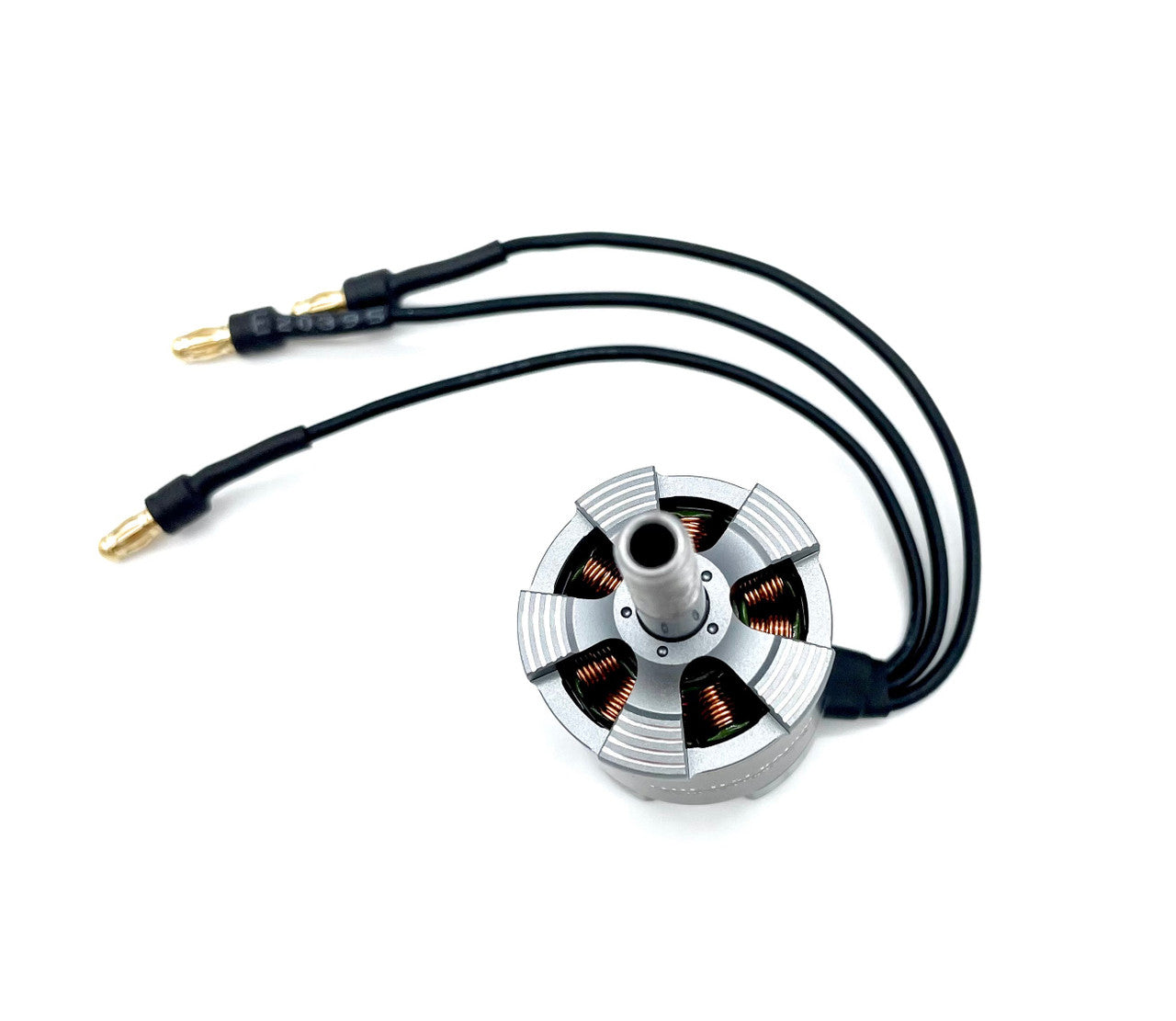

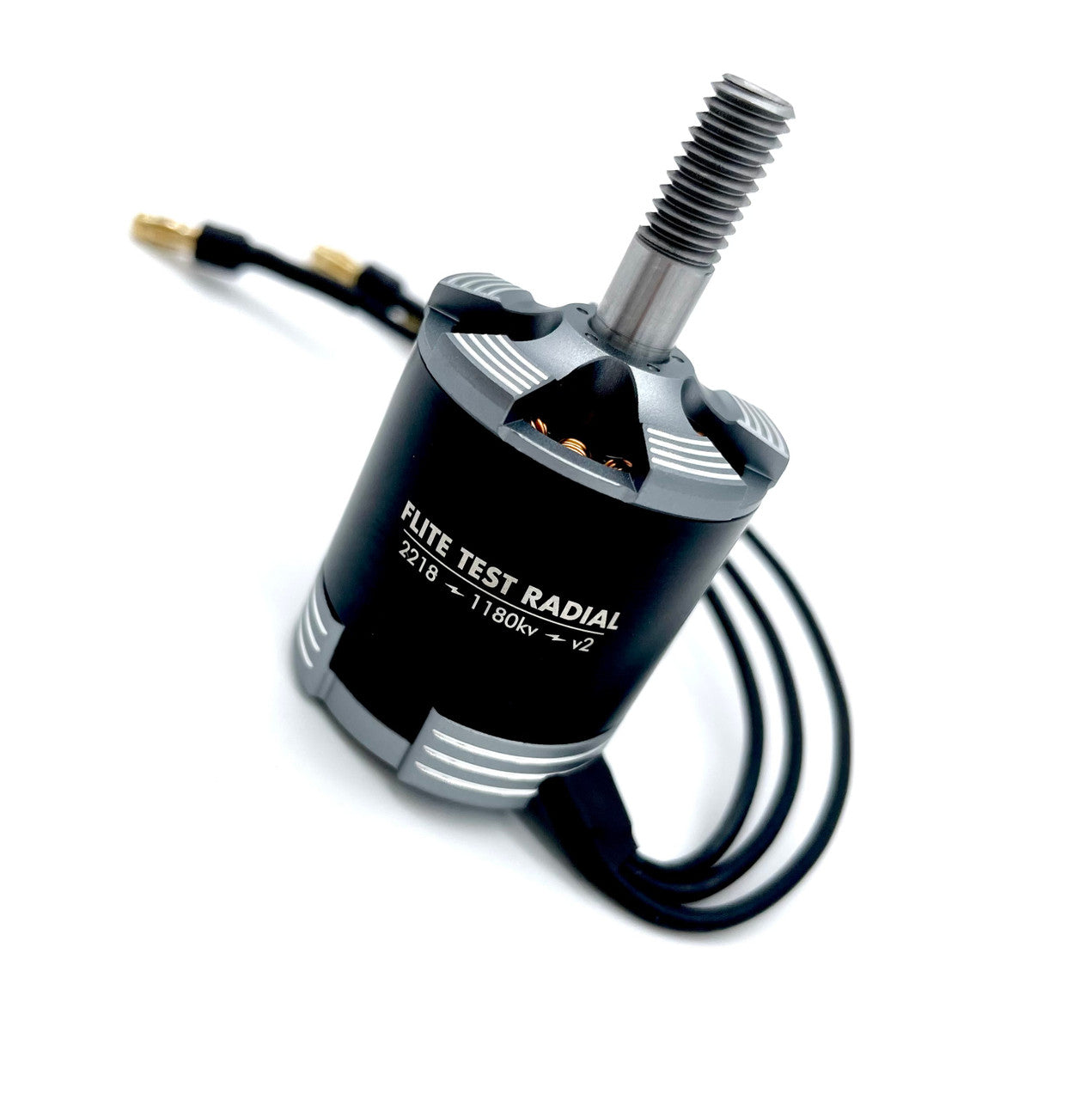

FT Radial 2218 1180kV Brushless Motor v.2 (C pack Motor only)

The Flite Test Radial line of brushless motors are the perfect choice for a wide array of aircraft. These motors have been designed by the Flite Test team for top performance on Flite Test designs but also work great for replacement motors and custom projects.



The Radial 2218B motor is designed for Flite Test airplanes that require a "Power Pack C" size motor. It has been carefully designed and engineered to perform better than most in its class, every motor is precision crafted within tight tolerances.



Featuring unique fins machined into the bell draw up cool air from the motor base and through the coils as the motor spools up. The faster it spins, the more air it ventilates. These cooling fins can reduce heat soaking by up to 30% depending on your environment. This “cool” feature allows the 2218 to not only have a longer lasting motor, but also harness the power of N52 magnets.

KV: 1180kv
WEIGHT: Approx. 76g with wires and bullets
WIRE AWG: 20AWG
STATOR DIAMETER: 22mm
STATOR HEIGHT: 18mm
SHAFT DIAMETER: 6mm
CONFIGURATION: 12N14P
MOTOR DIAMETER: 27.5mm
MOTOR HEIGHT: 34.0mm
RECOMMENDED PROPELLER: HQ 10 x 4.7 (both 3S )
PROP ADAPTER SHAFT THREAD: M5
INPUT VOLTAGE: 3S-4S (12.6 - 16.8v)
BULLETS: 3.5mm - Preinstalled
