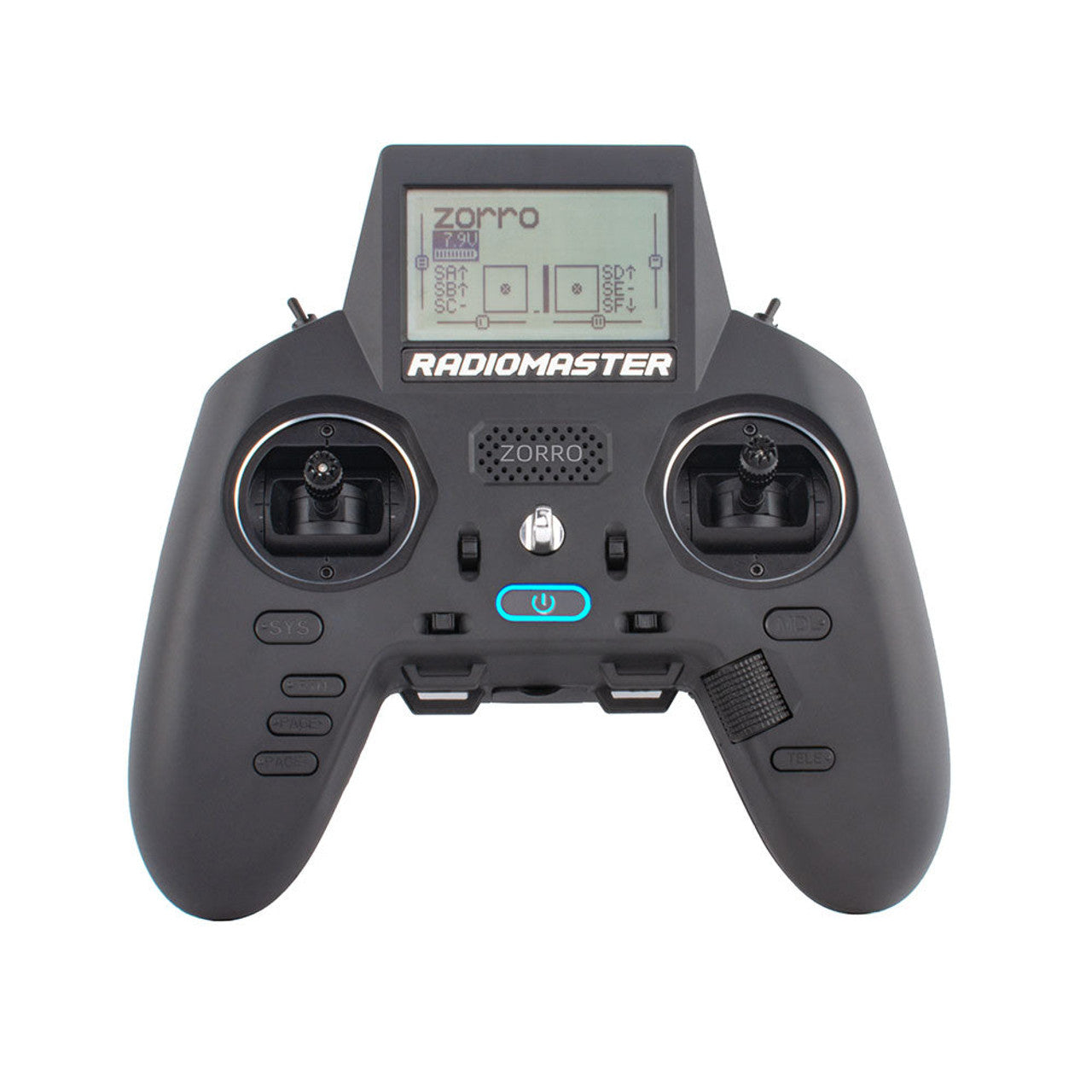

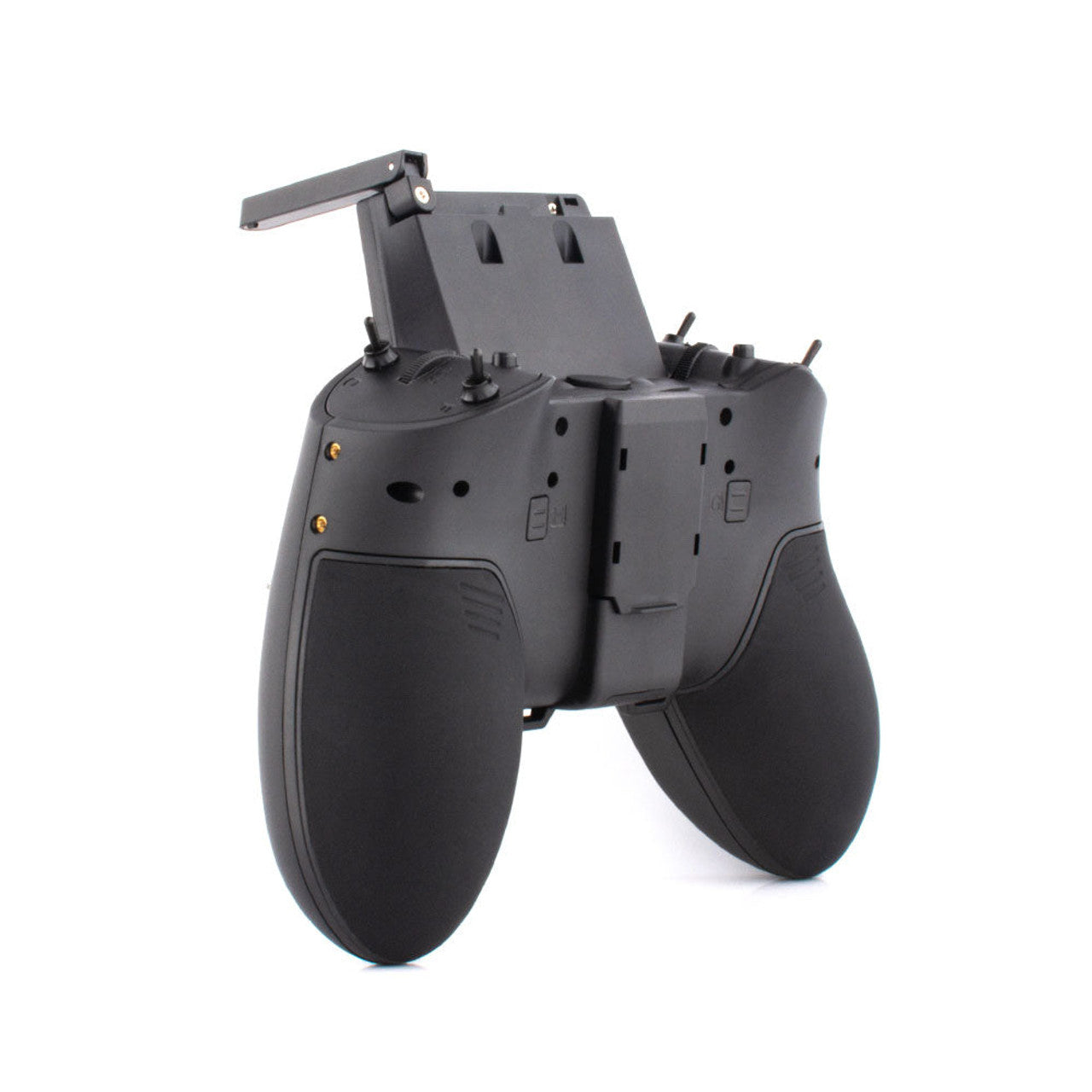

RadioMaster Zorro 4-in-1
RadioMaster Zorro 4-in-1
The RadioMaster Zorro, like the TX16S, is a multiprotocol compatible radio. We use our multiprotocol RadioMaster transmitters with receivers built by RadioMaster, FRSky and Spektrum and have had great results! The compact design and low price can make the Zorro more than a beginner radio. Built in battery charger work with USB C cables and fits any 18350 batteries (not included). Great community support for the included OpenTX software means there are lots of resources and information available. The price and features has made the Zorro our pick for a radio you can grow into!
Full Review
RadioMaster Zorro Radio - The Compact Class-Leader.
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
Specification
Versions |
CC2500 |
4in1 |
ELRS |
ELRS Starter Set |
CC2500 + TBS Nano Crossfire Combo |
|
Physical Dimensions |
170*159*108mm |
|||||
Weight |
350 grams |
|||||
Operating Frequency |
2.400GHz-2.480GHz |
|||||
Internal RF Options |
CC2500 multi-protocol |
4-in-1 multi-protocol |
ELRS |
CC2500 multi-protocol |
||
Supported Protocols |
Module dependent |
Module dependent |
ELRS |
Module dependent |
||
RF Power |
CC2500: 20dBm max. |
4-in-1: 20dBm max. |
Up to 250mw ( CE & FCC Versions will be available) |
CC2500: 20dBm max. |
||
Antenna Gain |
Folding 2db |
|||||
Operational Current |
160mA@8.4V |
|||||
Operational Voltage |
6.6-8.4v DC |
|||||
Control Distance |
> 2km @ 20dbm |
> 2km @ 20dbm |
Receiver and Power Output dependant |
> 2km @ 20dbm |
||
Operating system |
OpenTX / EdgeTX Compatible |
|||||
Control channels |
Maximum 16 (Rx dependent) |
|||||
Display |
128*64 Monochrome LCD |
|||||
Battery |
2 x 18350 (included) |
|||||
Charging |
Built in USB-C Charging |
|||||
Gimbal |
Hall-effect |
|||||
Module Bay |
Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost) |
|||||
Firmware Upgrade Method |
Via USB or SD card |
Support OPENTX & EDGETX
