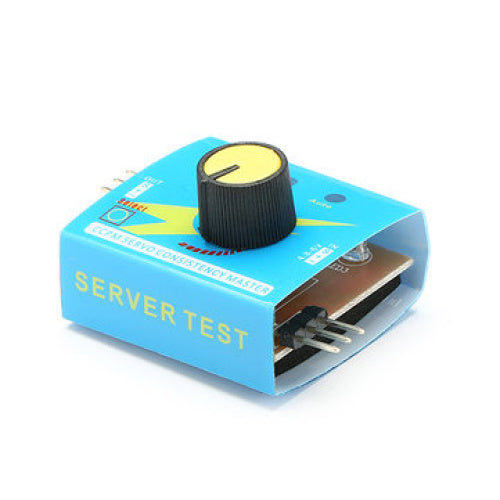

Servo Tester

The no-frills Servo Tester is a device that can be effectively used to test up to three servo motors at the same time. It is a useful tool to test Servos and center servos, ESC, and can also be used to determine the motor directions.

This clever little Servo Tester Module has three modes to check the reaction times, neutral points and maximum angles for up to 3 servos simultaneously.

Specifications

• Item Name: Servo Tester
• Size: 46x32x17mm
• Weight: 8g
• Color: Blue
• Input: DC 4.2 to 6.0V
• Output: ≤15mA (5.0)
• Output signal: 1.5ms±0.5ms
• Adjustment Methods: Manual, Neutral, Automatic.

Features

• cheap, no-frills Small size, low power consumption, high reliability and easy operation.
• It can easily detect and configure server virtual bit, jitter and middle position.
• Can connect two servos or ESC;
• MCU control,good stability,high accuracy.

Note:

This product can't test a servo with a weight more than 55g.
If you want to test the motor, please first connect the ESC.
